Ip68 Waterproof Ruggedized Silicone Industrial Keyboard For Harsh Environments

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-M275TP-FN-BL-IL-FDT

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Price : to be quoted

material : silicone rubber

connection : USB / PS2

application : industrial

FN keys : Yes

color : black

G.W. : 1.00KGs

Name : desktop silicone keyboard

Contact Now

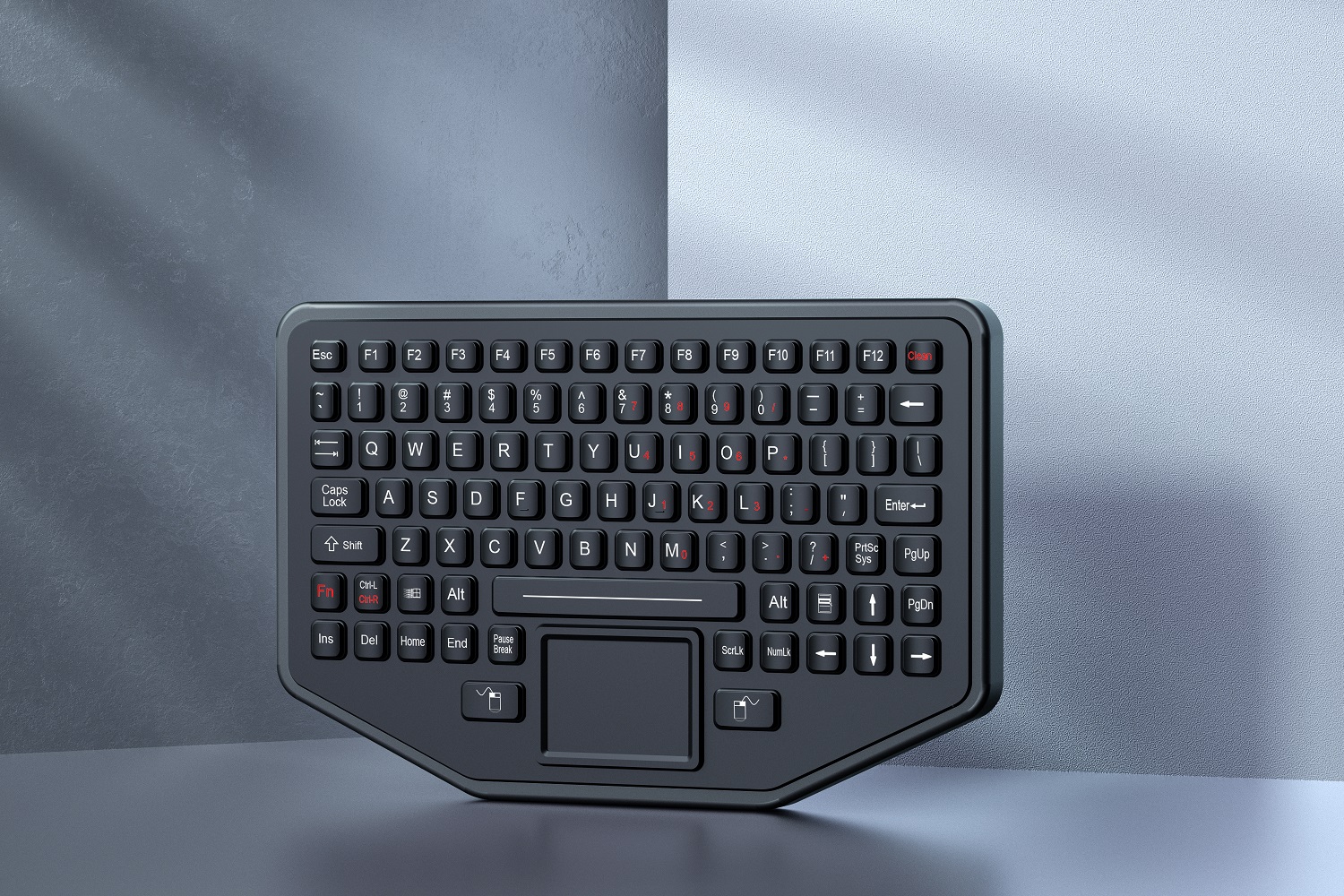

DESCRIPTION: 89 keys IP68 dynamic water proof sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2...F11,F12) are on the top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, adjustable industrial backlight included, VESA mountable super flat desk top version with robust ABS polycarbonate case and AMPS mounting holes, industrial level. military level optional.
Dimensions: 295mm x 191.03mm x 17.05mm ( L x W x H)

MECHANICAL DATA
Keys 89 keys (including 2 mouse buttons)
Key top style Protuberant rectangular keys with tactile feeling
Key Size 15.8mm x 15.8mm for normal keys
Key travel 1.50±0.10mm
Actuation Force 1.5N±0.2N (pressure point )
Switch life more than 5 million of operations
Touch pad sealed and ruggedized tough touchpad
Touchpad cover Composite
More than Lifetime 10 million strokes
Mutual capacitance sensing
X/Y axis location detection resolution 40 Counts /mm
X/Y position report relative
Output (self-detectable depending on cable) PS2 or USB
Tracking speed Maximum 1,016 m/sec
Power supply voltage 5VDC ± 0.25V
Current rating (active mode) < 10 mA
G.W. 1.00KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 50mA when backlight is off, 300mA with backlight on
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Carbon-on-Gold key switch technology with gold PCB
Interface PS2, USB available
Cable lengh Standard 2.0m, customized length available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 100%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
