EMC Keyboard Waterproof With Touchpad Military Rugged Keyboard
Product Description For Emc Keyboard:
110 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB,12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, with FN + Lock key to lock the whole keyboard and FN + space key to lock the touchpad for easy cleaning without needing to take away the keyboard from PC, with combined multimedia functions on F1-F12 keys for convenient and easy operation, rear panel mounted, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet, adjustable white backlight included. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
DIMENSION: 349.0mm x 145.0mm (front panel)
Emc Keyboard Technical Parameters:
| EMC KEYBOARD MECHANICAL DATA |
| Keys | 110 keys (including 2 mouse buttons) |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| Touch pad | sealed and ruggedized tough touchpad |
| Touchpad cover | Composite |
| More than Lifetime 10 million strokes |
| Mutual capacitance sensing |
| X/Y axis location detection resolution | 40 Counts /mm |
| X/Y position report | relative |
| Output (self-detectable depending on cable) | PS2 or USB |
| Tracking speed | Maximum 1,016 m/sec |
| Power supply voltage | 5VDC ± 0.25V |
| Current rating (active mode) | < 10 mA |
| G.W. | 0.80KGs |
| EMC KEYBOARD ELECTRICAL DATA |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
| Lifespan | > 5 years |
| Interface | USB |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| EMC KEYBOARD ENVIRONMENTAL ADAPTABILITY |
| Operating temperature | -40℃ to +75℃ |
| Storage temperature | -45℃ to +85℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Support and Services:
EMC Keyboard provides technical support and services to help you maintain the performance and reliability of your product.
We offer a variety of services to keep your EMC Keyboard running optimally, including:
- Diagnosing and troubleshooting of any hardware or software issues
- Software and firmware updates and upgrades
- Onsite support for installation, repair, and maintenance
- Help with product registration and warranty information
We also provide online resources such as user guides, FAQs, and troubleshooting tips to help you get the most out of your EMC Keyboard.
Packing and Shipping:
Packaging and Shipping for EMC Keyboard:
The EMC Keyboard is securely packaged to ensure that it arrives in perfect condition. All products are inspected and tested prior to shipping. The product is placed in a protective, double walled cardboard box and then further wrapped in bubble wrap for extra protection.
The package is then shipped via a reliable courier service to the customer's address. Standard delivery times may vary depending on the customer's location. Delivery times are usually 7-15 business days from the date of shipment.

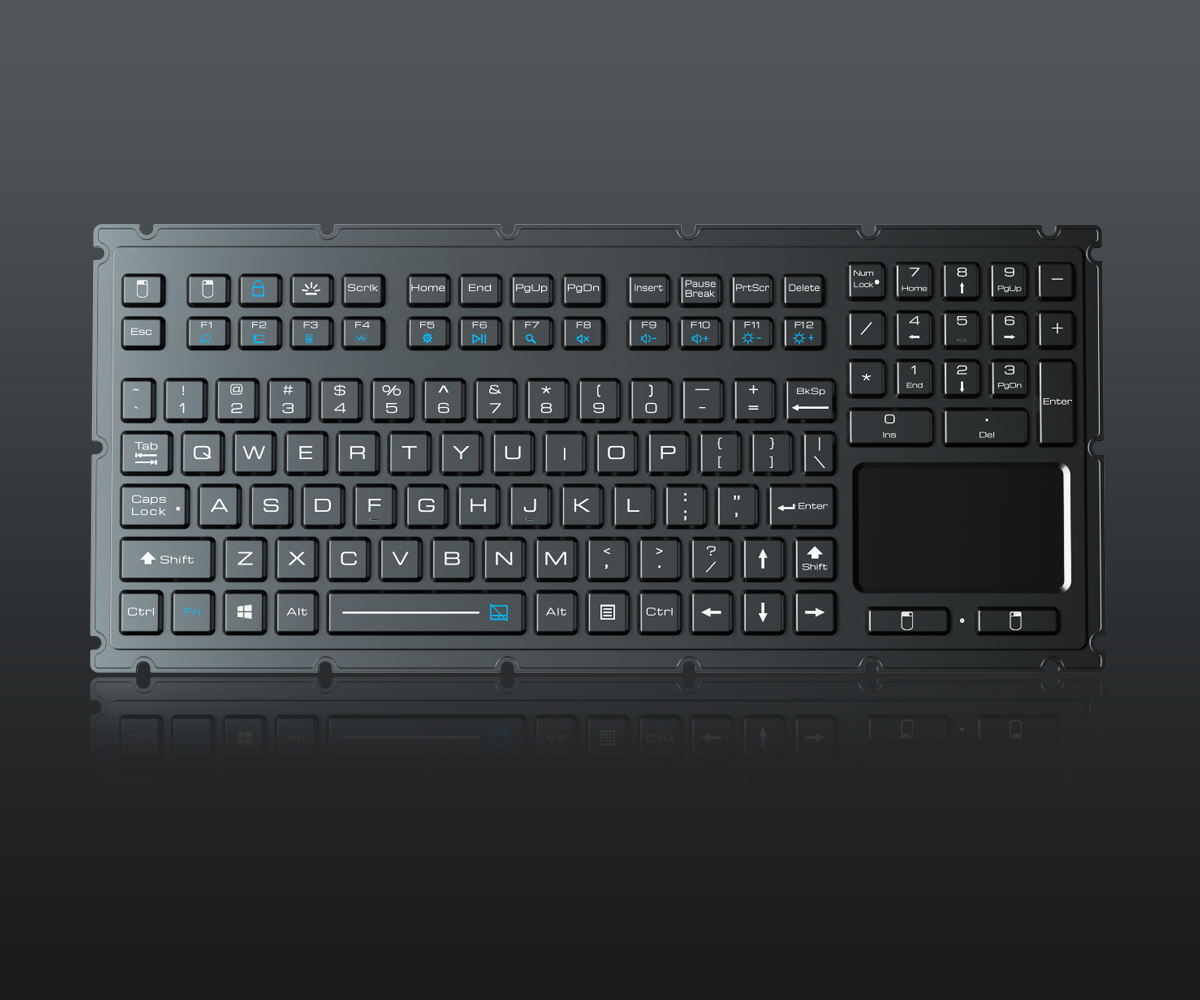

ACTUAL PHOTOS FOR EMC KEYBOARD
