Product Description For Emc Keyboard:
90 keys IP65 dynamic sealed and durable embedded silicone rubber military keyboard with a Force Sensing Resistor pointing device for fast and accurate cursor position, with built-in military grade PCB, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounted solution with aluminum alloy back plate and threaded bolts, white backlight included. Designed to Meet MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.), Which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.
Dimension: 281.0mm x 152.5mm (L x W)
Emc Keyboard Technical Parameters:
| MECHANICAL DATA |
| Keys | 90 keys (including 3 mouse buttons) |
| Switch Contact Material | Carbon-on-gold key switch technology |
| Key Top Style | Protuberant rectangular keys with tactile feeling |
| Key Travel | 1.50mm±0.10mm |
| Actuation Force | 1.5N±0.2N (pressure point ) |
| G.W. | 0.80KGs |
| ELECTRICAL DATA |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA when backlight is off, 300mA with backlight on |
| Meet MIL-STD-461G (EMC, EMI, EMS, ESD): |
| 1 | CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads |
| 2 | CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads |
| 3 | CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads |
| 4 | CS106 Conducted Susceptibility, Transients, Power Leads |
| 5 | CS112 Electrostatic Discharge Susceptibility |
| 6 | CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection |
| 7 | CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation |
| 8 | CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads |
| 9 | RE101 25Hz -100kHz Radiated Emissions, Magnetic Field |
| 10 | RE102 10kHz - 18GHz Radiated Emissions, Electric Field |
| 11 | RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field |
| 12 | RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field |
| MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
| Lifespan | > 5 years |
| Interface | USB, PS2 available. |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
| Operating temperature | -25℃ to +60℃ |
| Storage temperature | -40℃ to +70℃ |
| Operating RH | 3%~95% |
| Atmospheric pressure | 60-106Kpa |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| RELIABILITY |
| RoHS compliant, CE and FCC certified, MIL-STD-461G (EMC, EMI, EMS, ESD) and MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity etc.) |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >5 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATION | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
Support and Services:
EMC Keyboard provides technical support and services to help you maintain the performance and reliability of your product.
We offer a variety of services to keep your EMC Keyboard running optimally, including:
- Diagnosing and troubleshooting of any hardware or software issues
- Software and firmware updates and upgrades
- Onsite support for installation, repair, and maintenance
- Help with product registration and warranty information
We also provide online resources such as user guides, FAQs, and troubleshooting tips to help you get the most out of your EMC Keyboard.
Packing and Shipping:
Packaging and Shipping for EMC Keyboard:
The EMC Keyboard is securely packaged to ensure that it arrives in perfect condition. All products are inspected and tested prior to shipping. The product is placed in a protective, double walled cardboard box and then further wrapped in bubble wrap for extra protection.
The package is then shipped via a reliable courier service to the customer's address. Standard delivery times may vary depending on the customer's location. Delivery times are usually 7-15 business days from the date of shipment.

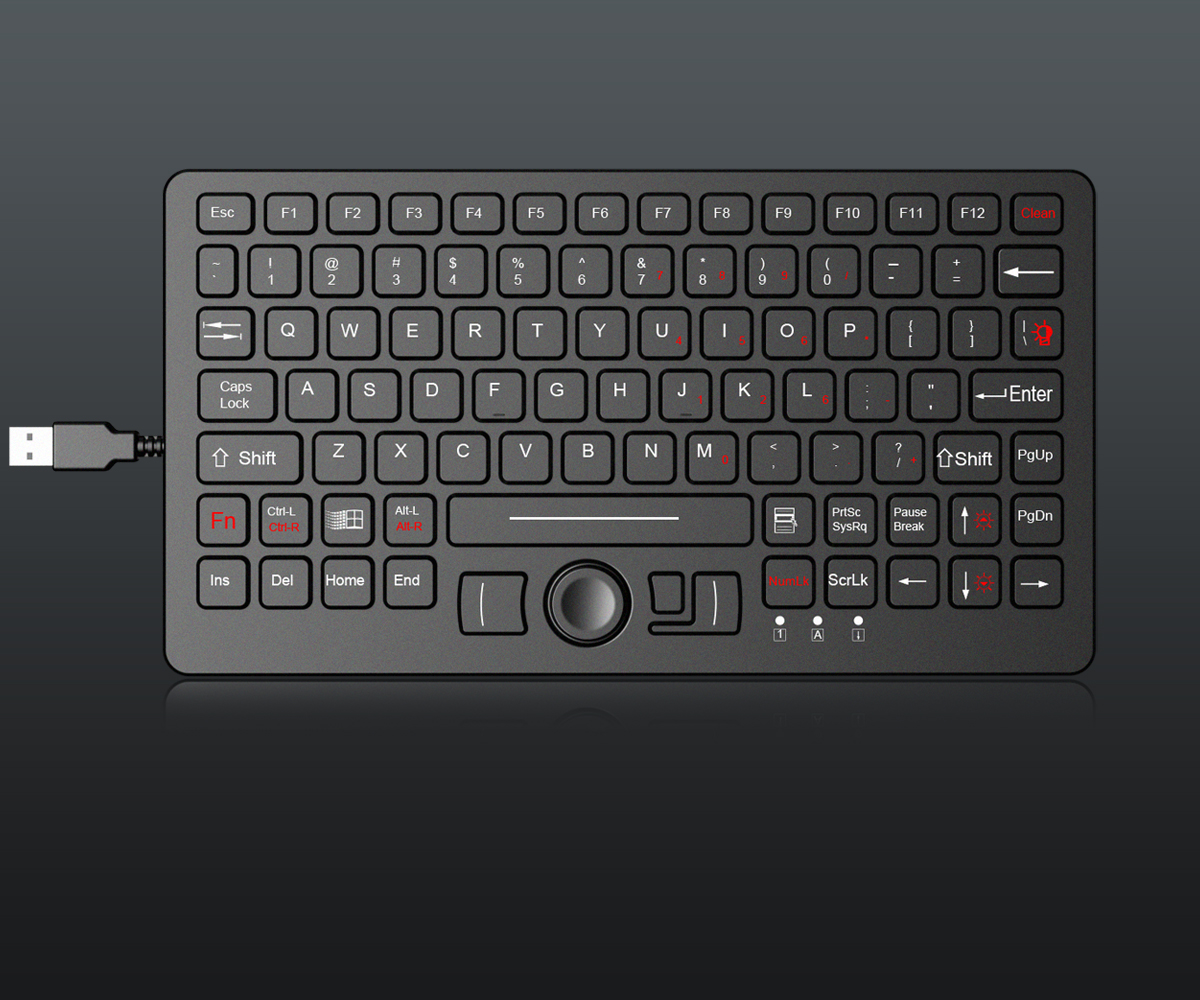

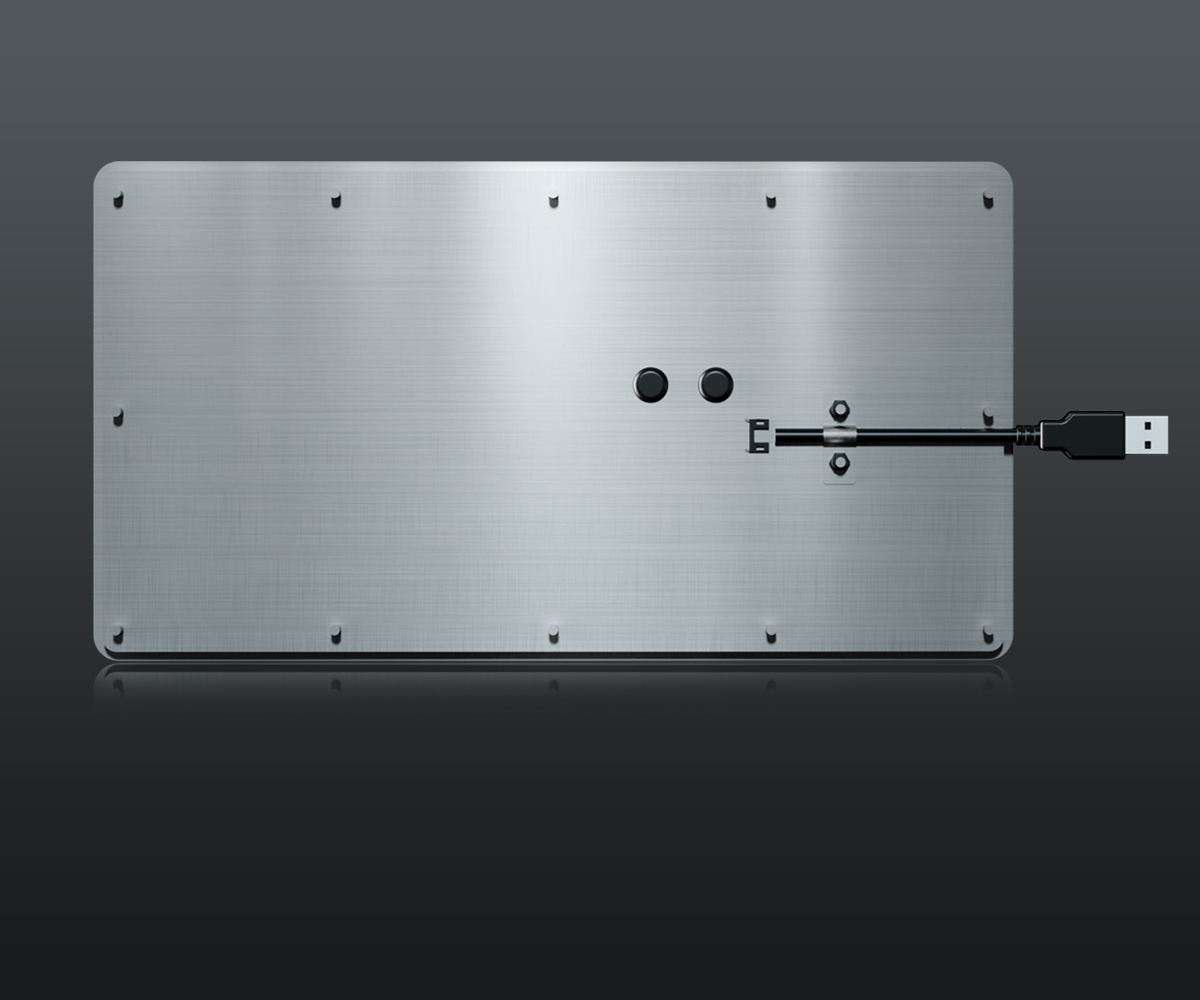

ACTUAL PHOTOS FOR EMC KEYBOARD
