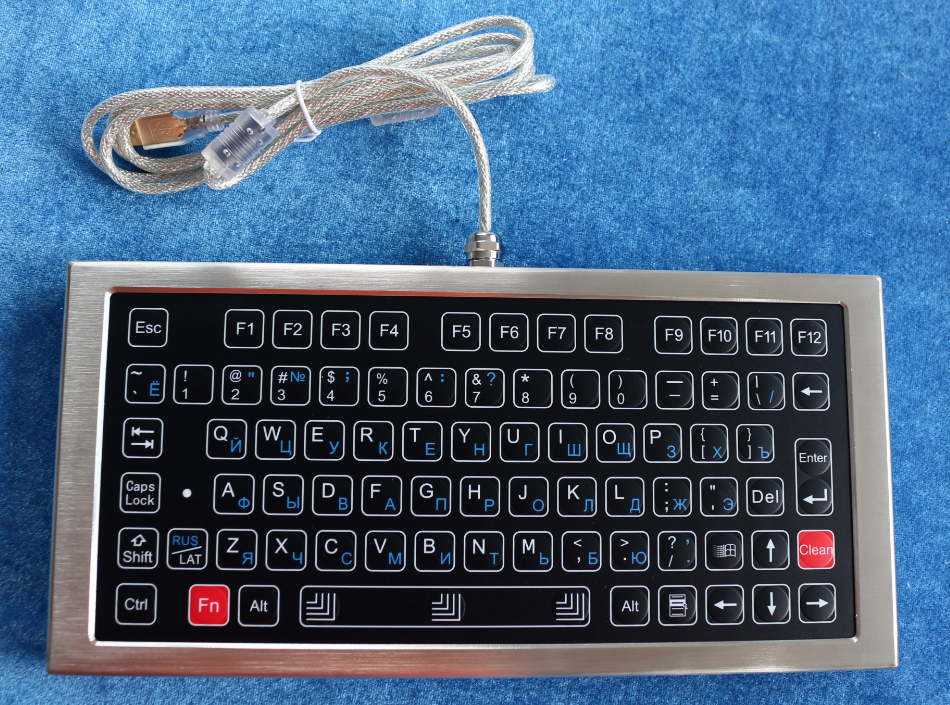

DESCRIPTION: -79 keys compact format IP68 dynamic rated membrane industrial keyboard with function keys on the upper line.
-2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology
-Short stroke 0.45mm with extremely good tactile feeling for reliable data input.
-With FN and CLEAN key for easy cleaning via lock/disable the entire keyboard without taking away the keyboard from PC
--Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester,which withstand to most chemicals and liquids under the harshest environments,
-Back side sealed with ruggedized and vandal proof stainless steel plate for stand alone DESK TOP VERSION.
APPLICATIONS:
This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses etc
MAIN FEATURES:
1.Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
2.The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
3.PS/2, USB connection cables that plug directly into computer like keyboard operations.
4.Ease of customizing with multiple languages, to accommodate foreign or custom variants.
5.This stylish, rugged medical keyboard is ideal for any application requiring a rugged enclosure and low profile.
6.FN+ Clean key : Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime.
MECHANICAL DATA:
Number of Keys: 79
Key switch Technology: metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
Actuation Force: 2.8N for key 14.0mm x 14.0mm (press point)
Key Travel: 0.45mm
Key switch Lifetime: 1 mil. operations
Protection Level: IP68
Mounting Type: Movable Desk Top.
Operating Temperature: -20 °C to +50 °C;
Colors: 2 (White, Black)
G.W.: 1.80KGs
Key Dimensions (print area): 14.0mm x 14.0mm
Specification:
| Number of Keys: | 79Keys |
| Key switch Technology: | Gold-on-gold metal dome key switch technology with short stroke keys |
| Actuation Force: | 2.8N for key 14.0mm x 14.0mm (press point) |
| Key Travel: | 0.45mm |
| Key switch Lifetime: | 1 mil. operations |
| Protection Level: | IP68 |
| Mounting Type: | Movable Desk Top. |
| Operating Temperature: | -20 °C to +50 °C; |
| Colors: | White or Black |
| G.W.: | 1.80KGs |
| Key Dimensions (print area): | 14.0mm x 14.0mm |
| ELECTRICAL DATA: |
| Supply Voltage: | +5V DC +/- 5% |
| Current Rating: | appr. 50mA |
| EMC Standard: | EN 55032:2015; EN 55035:2017 |
| Lifespan | > 3 years |
| Interface: | PS2, USB available. |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android |
RELIABILITY :
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
