104 keys Stainless Steel Keyboard with Mechanical Trackball and Numeric Keypad
MODEL NO.: K-TEK-A420-MTB-KP-FN
DIMENSIONS: 420.0mm x 145.0mm (top panel)
Special Features:
1)104 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard
2)With full keyboard functionalities and IP65 static 38.0mm stainless steel mechanical trackball module (400 DPI resolutions)
3) Industrial PCB with carbon-on-gold key switch technology
4)With long stroke (2.0mm),which has extremely good tactile feeling for fast and accurate data input without any noise.
5)With numeric keypad,function keys F1, F2..F10, F11, F12 are on the top line for easy operation,
6)3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling.
7)One complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet.
8)Stainless steel top plate with threaded bolts for top panel mounting solution.
9)Explosionproof for the mine application.
10)Any customized layout is available.
11) Keyboard with following different trackballs:
|
A420-MTB-KP-FN-DT | Keyboard;
400 DPI Mechanical Trackball;
Adjustable Backlight is optional |
USB/PS2 |
IP65 |
|
A420-OTB-KP-FN-DT | Keyboard;
800 DPI Optical Trackball;
Adjustable Backlight is optional |
USB/PS2 |
IP68 |
|
A420-LTB-KP-FN-DT
| Keyboard;
1200 DPI Laser Trackball;
Adjustable Backlight is optional |
USB/PS2 |
IP68 |
MECHANICAL DATA

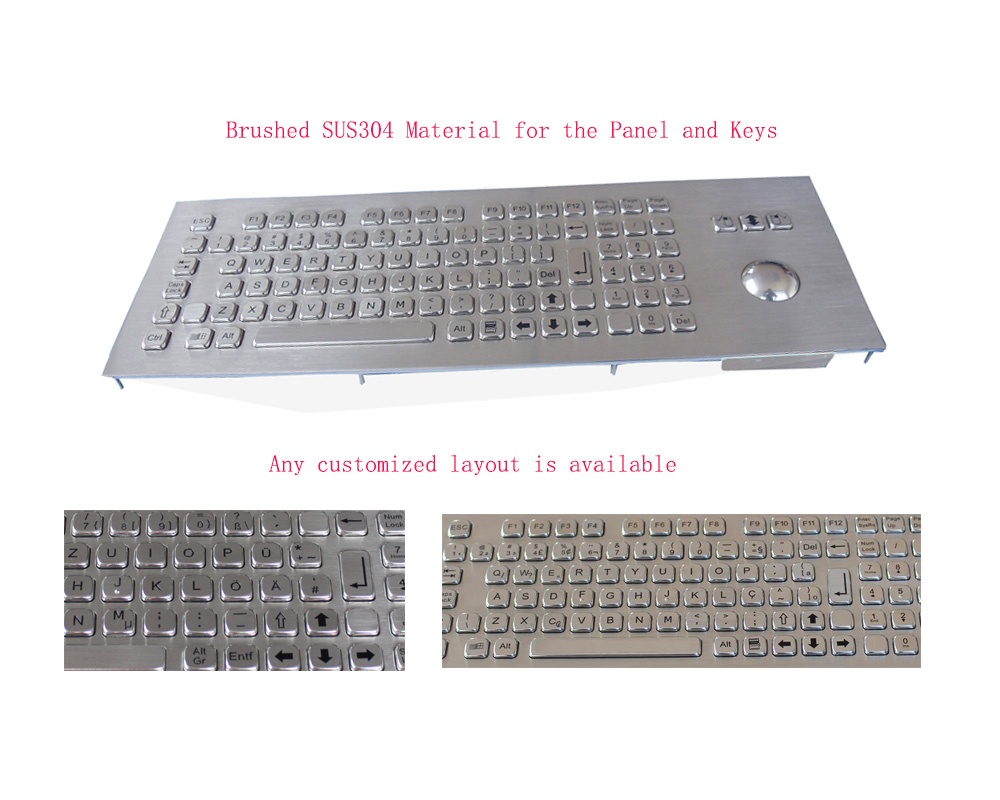

· Actuator/keys: 104 keys, super quality SUS304 brushed stainless steel
· Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
· Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
· Key travel: 2.0mm
· Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
· Switch life: more than 10 million of operations.
· Front Plate: 1.5mm thickness super quality brushed stainless steel
· Back Plate:3.0mm thickness brushed & oxidized aluminium
· Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball.
· G.W.: 2.50KGs
· Dimensions: 420.0mm x 145.0mm (front panel) , 400.0mm x 125.0mm (back panel)
ELECTRICAL DATA
· Supply Voltage: +5V DC +/-5%
· Current Rating: appr. 30mA
· EMC Standard: EN 55032:2015, EN 55035:2017
· Lifespan > 5 years
· Switch Contact Material: Carbon-on-Gold key switch technology PCB.
· Interface: PS2, USB available
· If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
· OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android.
ENVIRONMENTAL ADAPTABILITY
· Operating temperature:-20oC to +60oC
· Storage temperature: -30oC to +70oC
· Operating RH: 30-90%
· Atmospheric pressure: 60-106Kpa.
· Saline mist: 96 hours, IEC 60512-6
· Damp heat test at + 40oC: 21 days, IEC 60512-6
· Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
· RoHS Compliant, CE and FCC, ESD
· Protection Level: IP65(front panel)
· Vandal resistant IK08
· Key Lifespan >5 million actuations
· MTBF >20000H
· MTTR <30min
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.
Q: How long is your delivery time?
A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.
Q: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
Q: What is your terms of payment ?
A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
Product Tags:
|
|

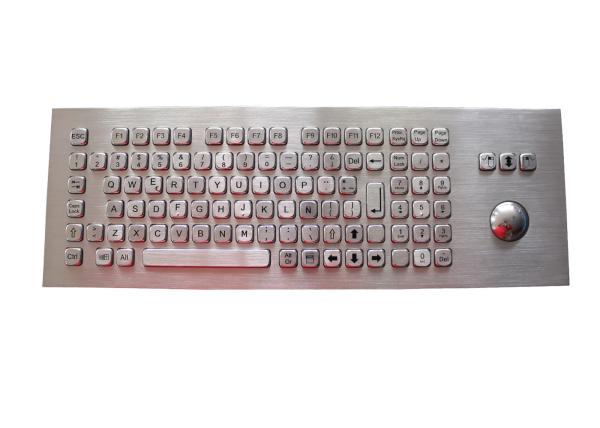

400 DPI 38.0mm Mechanical Trackball Panel Mount Keyboard Images
|
