Wall Mount SUS304 IP68 Rugged Industrial Metal Keyboard

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-A272-DWP-MDT

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : SUS304

Protection Level : IP68

Vandal resistant : IK08

long stroke : 2.0mm

Mounting : Wall Mounting

Interface : PS2, USB available

Braille : Optional

G.W. : 2.5KG

Contact Now

Long key stroke 2.0mm Rugged Wall Mount Industrial Keyboard Metal Kiosk IP68 Keyboard

Special Features:

1) IP68 dynamic washable vandal proof industrial metal keyboard with 68 keys.

2) With long stroke (2.0mm) for fast and accurate data input without any noise.

3)FN + Clean combination keys for easy cleaning without taking the keyboard away from PC.

4)Metal keys are protected against twisting and levering which cannot be dislodged from front.

5)Customizing with multiple languages to accommodate different customer demands.
6)PS/2, USB connection plug and play with PC via PC existing OS driver, no need installing separate driver.
APPLICATION:
--It is mainly targeted for unsupervised or semi-supervised positions of varied access.
-Internet terminals and information kiosks at universities, shopping malls, hotels, banks.
-Airports, railway-stations and other public areas, ticket vending machines, gas stations, internet public phones etc.
MECHANICAL DATA:
Material: super quality SUS304 brushed stainless steel
keys: 68
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size:
14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x28.0mm (pressure point)
Switch life: More than 5 million of operations.
G.W.: 2.5 KGS
Dimensions: 290.0mm x 165.0mm x (37+23)mm (L x W x H)

ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB
Interface: PS2, USB available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY :
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40o C: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY:
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
DIMENSIONS: 290.0mm x 165.0mm x (37+23)mm (L x W x H)
Wall Mount SUS304 IP68 Rugged Industrial Metal Keyboard

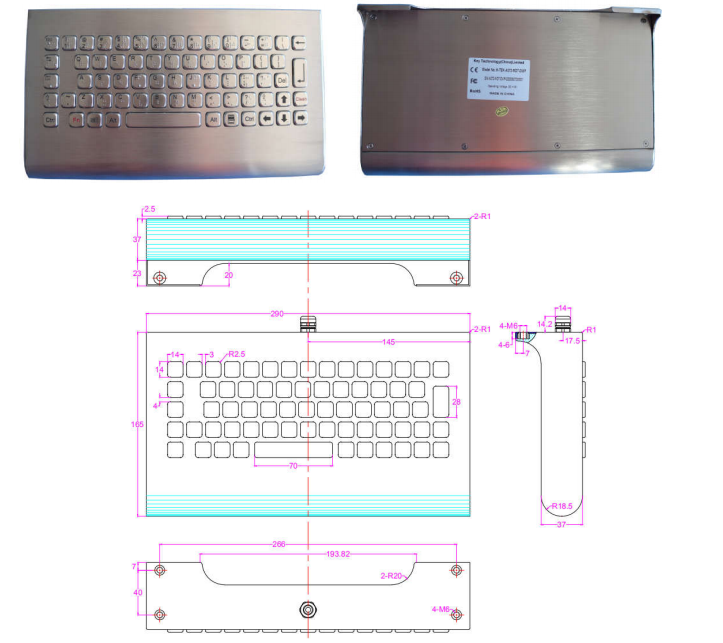

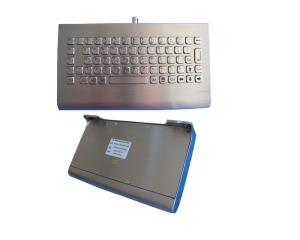

Actual Photos:
Front View
Wall Mount SUS304 IP68 Rugged Industrial Metal Keyboard
Back View
Wall Mount SUS304 IP68 Rugged Industrial Metal Keyboard

Wall Mount SUS304 IP68 Rugged Industrial Metal Keyboard

FAQ
www.rugged-key.com
www.key-tek.cn
www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
If you have another question, pls feel free to contact us.
