Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

Product Categories
Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

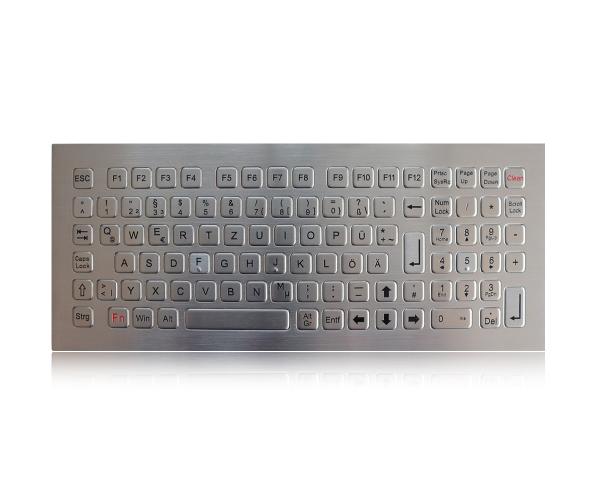

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-B340KP-FN-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Stainless steel

Keys : 96 keys

Key travel : 0.45mm±0.05mm

Interface : PS2, USB available

Dimensions : 340.0mm x 145.0mm ( Front panel)

G.W : 1.40KGs

Contact Now

Stainless Steel Keyboard SUS304 For Outdoor Kiosk

DESCRIPTION: 99 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke short stroke (0.45±0.05mm) with excellent tactile feeling for stable and accurate data input, with 12 function keys(F1, F2..F10, F11, F12) on the top panel for easy operation, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution.Industrial Backlight (red/blue/white/green) optional. FN+Clean combination keys to lock/disable the whole keyboard for easy cleaning without error output. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 340.0mm x 145.0mm ( Front panel)

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk

MECHANICAL DATA
Actuator/keys 99 keys
Key top style Non-protuberant rectangular keys, laser engraved & etched legends on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Key travel 0.45±0.05mm
Actuation Force 3.5N±0.2N for key 14.0mm x 14.0mm (pressure point ), 7.0N±0.4N for key 14.0mm x 28.0mm (pressure point)
Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 2.0mm thickness super quality brushed stainless steel
Switch life more than 1 million of operations
G.W. 2.00KGs
METAL KEYBOARD ELECTRICAL DATA
Supply Voltage +5V DC ± 5%
Current Rating 30mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material Gold-on-Gold key switch technology PCB
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 30-90%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
INDUSTRIAL KEYBOARD RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level IP65 dynamic (front panel)
Vandal resistant IK09
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, coal and mine, medical, bank kiosk and self service terminal, public access, explosion-proof automation, oil and gas etc.

Product Tags:

Outdoor Kiosk Stainless Steel Keyboard



IP67 Stainless Steel Keyboard



SUS304 Vandal Proof Keyboard


Wholesale Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk from china suppliers

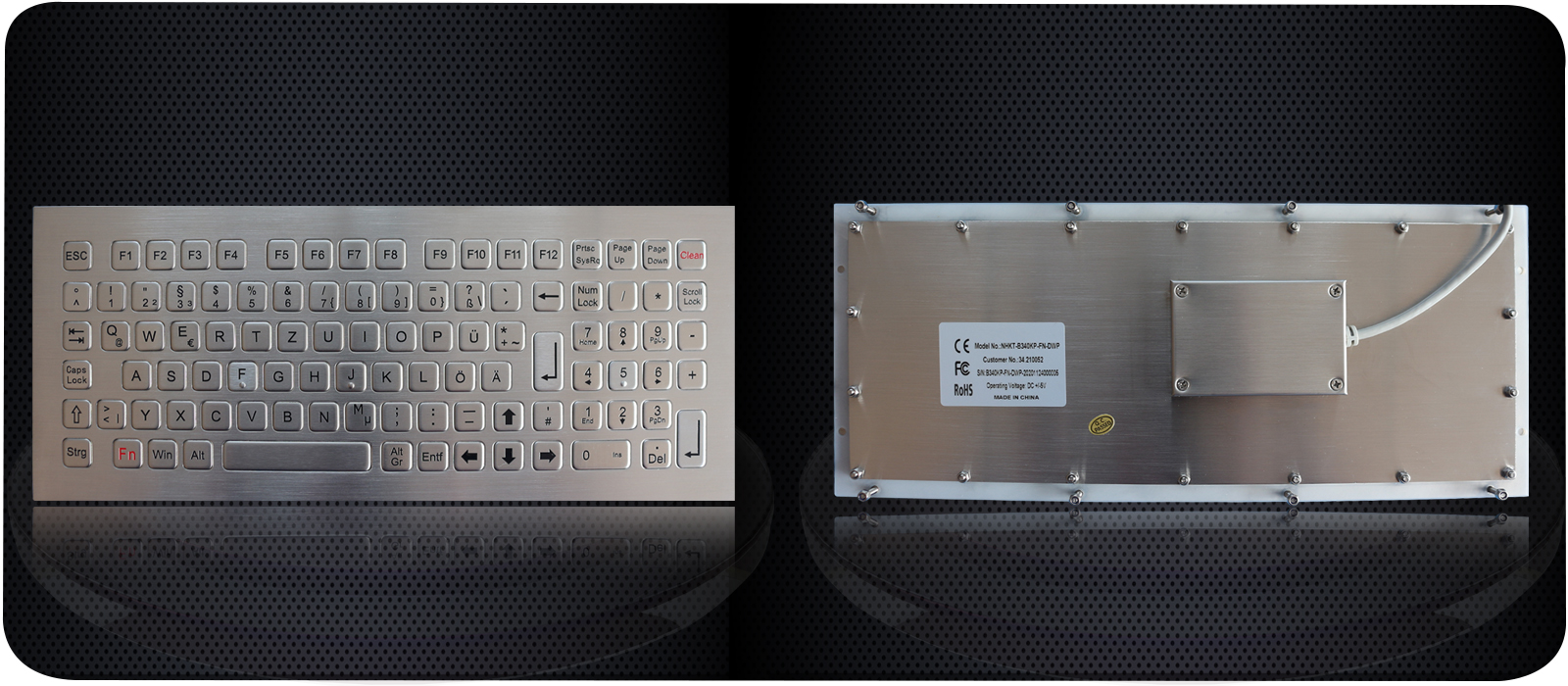

Vandal Proof IP65 Stainless Steel Keyboard SUS304 For Outdoor Kiosk Images
