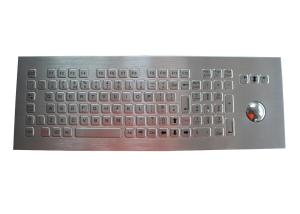

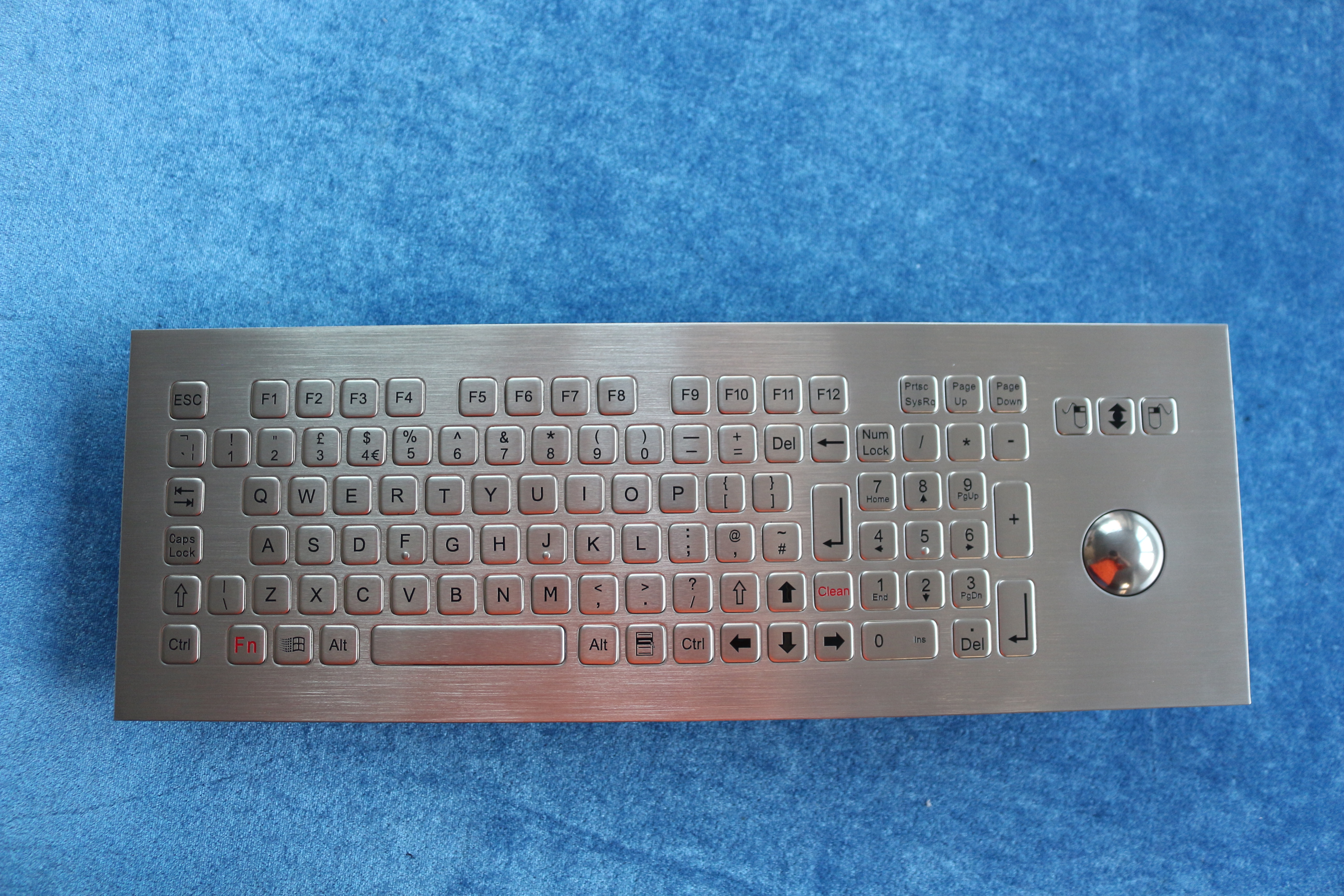

DESCRIPTION:104 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with +800DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input. F1, F2, F3…F10, F11, F12 are on the top line for easy operation, with numeric keypad , 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, which is without metal parts inside to avoid rust risk and anti-salt spray corrosion.
DIMENSIONS: 420.0mm x 145.0mm (top panel)
MECHANICAL DATA
Actuator/keys: 104 keys, super quality SUS304 brushed stainless steel.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness super quality brushed stainless steel
Tracker ball: 38.1mm (1.5’) diameter, IP68 dynamic 800DPI optical trackbal
G.W.: 2.20KGs
Dimensions:420.0mm x 145.0mm (L x W )
ENVIRONMENTAL ADAPTABILITY
| Operating temperature | -20oC to +60oC |
| Storage temperature | -30oC to +70oC |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa. |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC | 10 days, IEC 60512-6 |
| Protection Level | keyboard IP67 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
