Backlight EMC Keyboard Military Level Silicone Rubber Keyboard 88 Keys USB Interface

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-M315TP-FN-MS-BL-NV-151B

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2-3 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : silicone

Backlight : White

Name : EMC keyboard

Keys : 88 keys

Interface : USB

Protection Level : IP67

Contact Now

Backlight EMC Keyboard Silicone Rubber Military Level Keyboard

DESCRIPTION: 88 keys IP67 dynamic sealed & ruggedized silicone rubber military level keyboard with sealed and tough touch pad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, membrane key switch technology with long stroke (1.20mm) with extremely good tactile feeling for fast and accurate data input without any noise and error output, without missing keys or repeat output, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable whole keyboard without needing to take away the keyboard from PC, rear panel mount with super thin ruggedized aluminum back plate with mounting holes, adjustable industrial white backlight included. USB interface, designed to meet MIL-STD-461G and 810F, wide temperature -40 to +60°C. with strong anti-interferance, stability and anti radiation
DIMENSIONS : 315.0mm x 108.0mm (L x W)
MECHANICAL DATA
Keys: 88 keys
Key top style:
Protuberant rectangular keys with tactile feeling.
Touch pad
Lifespan: over 5 millions actuation
Mutual capacitance sensing:
X/Y axis location detection resolution: 40 Counts /mm
X/Y position report: relative
Mouse tracking speed: > 1.016 m/s
Key travel: 1.2mm
Supply voltage
5V ± 0.25V
G.W.: 0.80KGs
Dimensions: 315.0mm x 108.0mm (L x W)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr.
appr. 50mA (non-backlight), 250mA (with backlight on)
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material:
appr. 50mA (non-backlight), 250mA (with backlight on)
Interface: USB
Cable length:
Standard 0.8/1.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40oC to +60oC
Storage temperature: -45oC to +65oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS, CE and FCC
Protection Level: IP67
Key Lifespan >5 million actuation
MTBF >20000H
MTTR < 30min

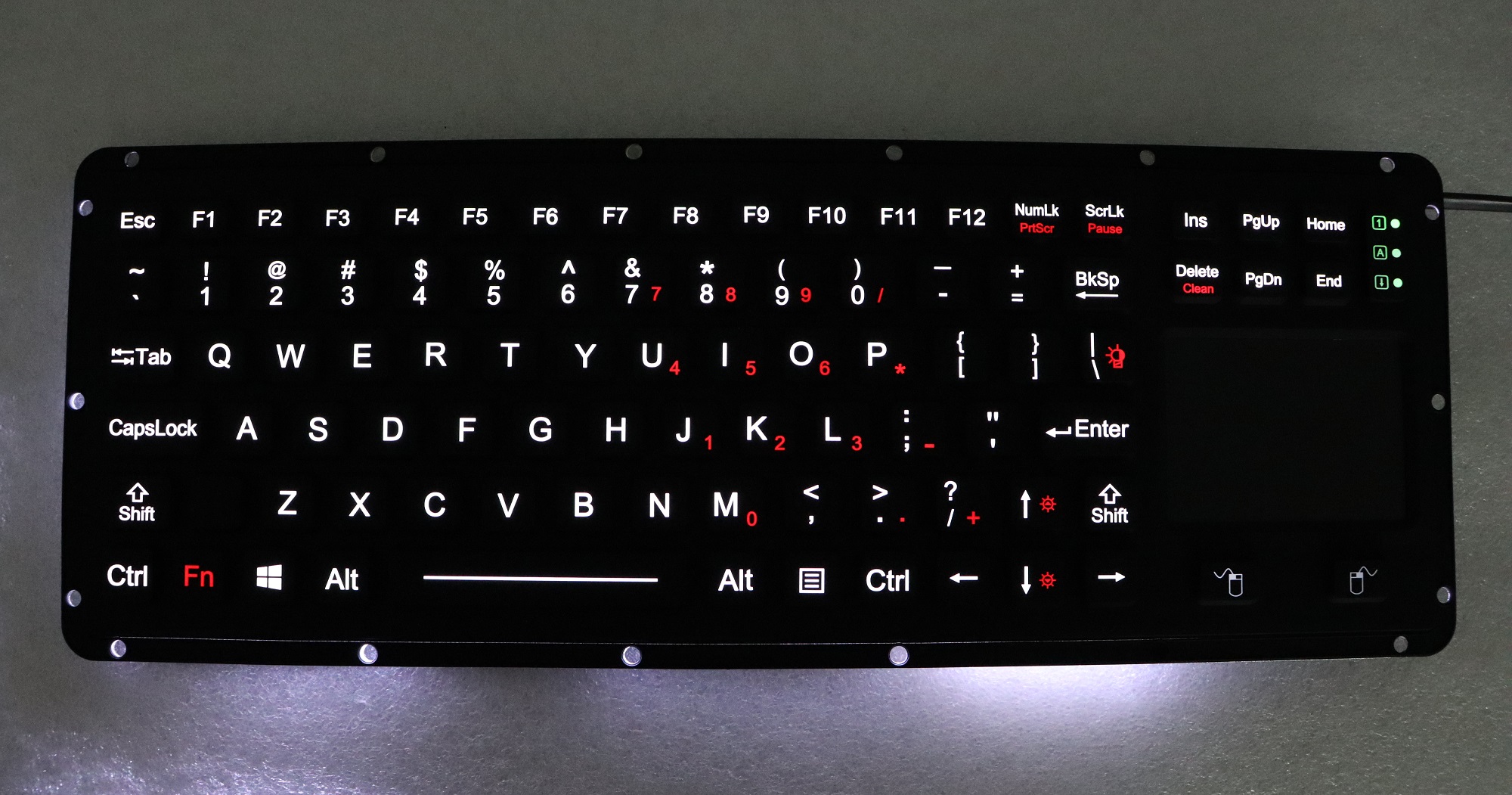

Backlight EMC Keyboard Military Level Silicone Rubber Keyboard 88 Keys USB Interface
Backlight EMC Keyboard Military Level Silicone Rubber Keyboard 88 Keys USB Interface
Backlight EMC Keyboard Military Level Silicone Rubber Keyboard 88 Keys USB Interface

EMC KEYBOARD MAIN FEATURE:
Keyboard with white adjustable backlighting, which makes this keyboard ideal for applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids, which means it can withstand direct hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance
FN + Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
-User is notified of ‘lock down mode’ by brightly lit FN+CLEAN KEY
With firm tactile key feel, key travel 1.2mm key travel.
Actuation Force: 1.2N±0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
USB connection cable that plugs directly into computer like keyboard operations, without needing any driver.
Enclosure: industrial silicone, aluminum back plate
Key life: 5 millions
