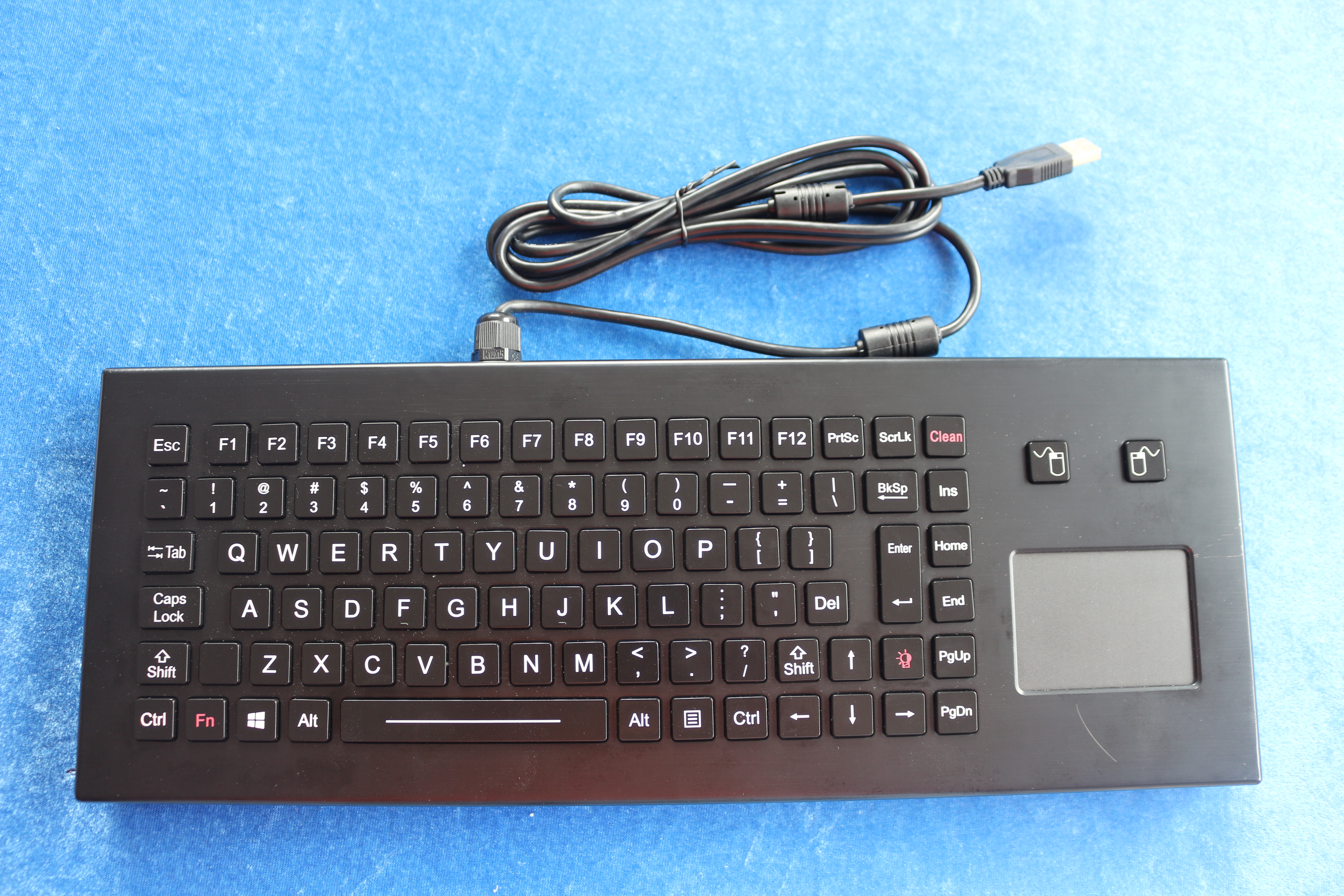

Marine Military Stainless Steel Keyboard Ruggedized Keyboard With Backlight

MECHANICAL DATA

Actuator/keys: 91 keys, durable and robust polymer keys.

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 13.5mm x 31.5mm for enter key, 13.5mm x 85.5mm for space bar.

Key travel: 1.50mm

Actuation Force: 1.8N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.5 N+/-0.10N for key 13.5mm x 31.5mm (pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

Back Plate:1.2mm thickness super quality brushed stainless steel

Touchpad: sealed and ruggedized tough touchpad.

Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative

Output (self-detectable depending on cable): USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5VDC ± 0.25V
Current rating (active mode): 17 mA

Dimensions: 390.0mm x 145.0mm x21.5 (L*W*H)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 300mA

EMC Standard: EN 55032:2015, EN 55035:2017

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: USB

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

Operating temperature: -40℃ to +85℃

Storage temperature: -45℃ to +90℃

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40^oC: 21 days, IEC 60512-6

Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP68

Vandal resistant IK09

Key Lifespan >5 million actuation.

MTBF >20000H

MTTR <30min
