Backlit Industrial Marine keyboard 85 keys IP67 dynamic waterproof

85 keys compact format IP67 dynamic waterproof with backlight industrial keyboard

MODEL NO.: K-TEK-M361-OTB-FN-BT-DWP

DESCRIPTION:

1.85 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with durable polymer keys

2.IP68 dynamic washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate coursor position.

3.Sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise.

4.Functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation.

5.High quality durable black titanium electroplated on the top stainless steel plate.

6.3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,

7.Strong durable polymer keys caps with laser technology for backlight out, with adjustable backlight included, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution.

8.FN + CLEAN key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC,

which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,

oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 361.0mm x 145.0mm (front panel)

MECHANICAL DATA:

ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6

RELIABILITY

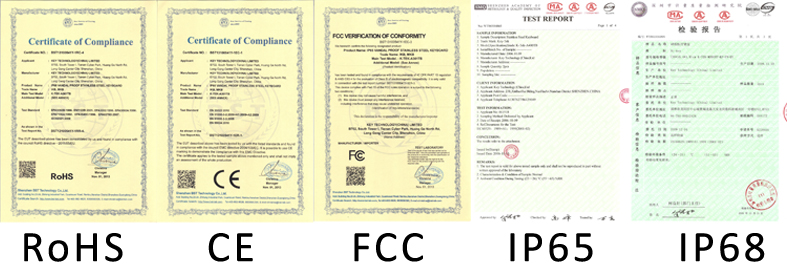

RoHS, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK10
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min

Actual Photos:

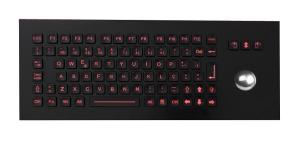

FRONT VIEW

BACK VIEW

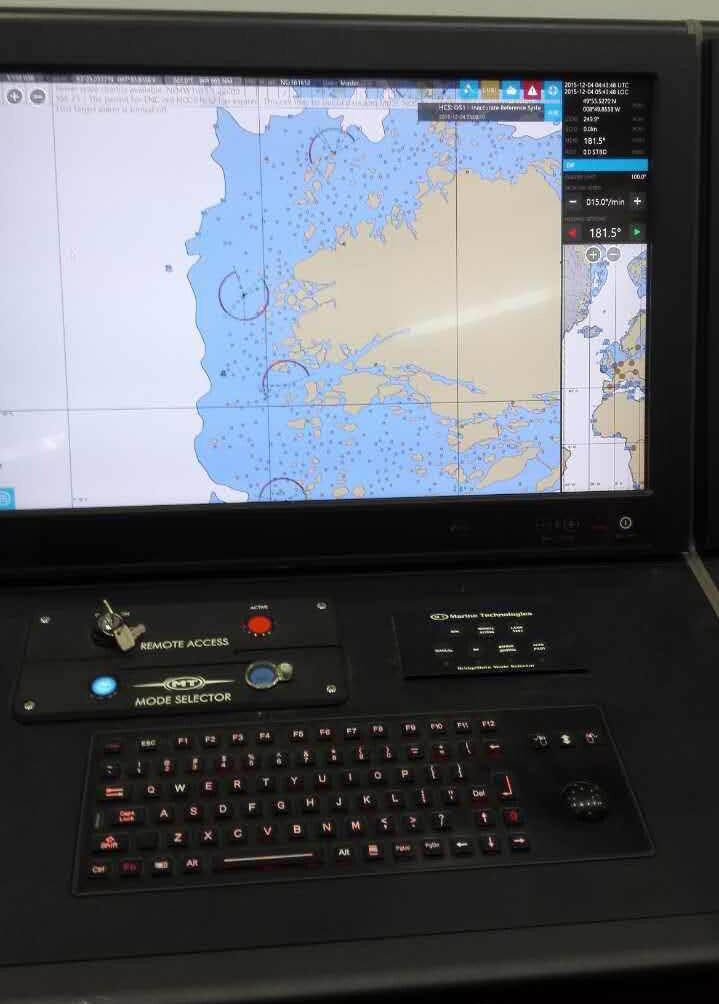

APPLICATION

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating: 40mA for keyboard and trackball without backlight.
• 240mA for keyboard and trackball with backlight on.
• EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
• EMI: EN 55022: 2010
• EMS: EN 55024:2010
• Lifespan>5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available.
• OS: All windows, Linux, Unix, Mac OS

APPLICATION:

• This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
• Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions.
• A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism.
• A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.

FAQ
Key Technology (China) Limited
www.rugged-key.com
www.key-tek.cn

1: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

2. If I need customized products , what is the delivery date time and price ?

A:The price is according to the way you want customize your keyboard. Delivery time usually is 2-3 weeks.

3. Can you customize the surface and program of your product according to my requirements?

A:Yes. You need to provide the surface draft !

3.Is your keyboard waterproof and vandal proof?

A:We do have waterproof vandal proof metal keyboards. Tell us is for indoor or outdoor, we can recommend you the right product.

4. What's the warranty of your products?
A:One year
