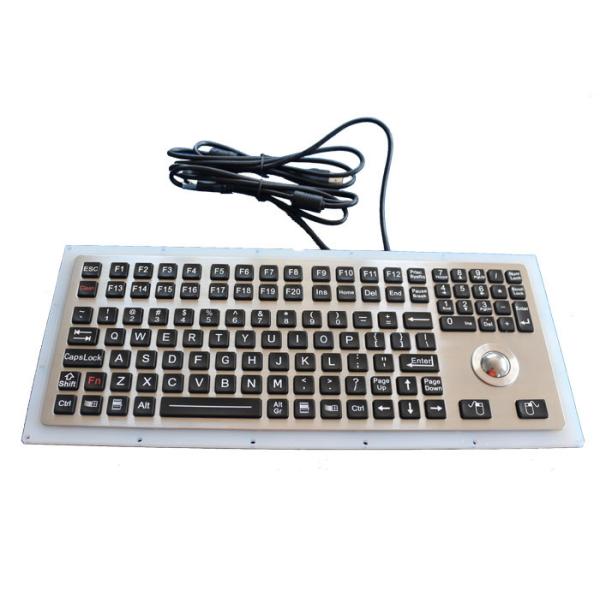

116 Keys IP67 Waterproof Black Ruggedized Industrial Metal Keyboard with Trackball
Description:
116 keys compact format IP67 dynamic water proof & vandal proof stainless steel industrial keyboard with individual durable and robust polymer keys with full keyboard functionalities, totally sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise, function keys F1, F2, ...F23, F24 are on the top line for easy operation, individual numeric keypad integrated, with integrated IP68 dynamic waterproof optical trackball module with +800 DPI for fast and accurate cursor position, FN + Clean combination key lock/disable the keyboard for easy cleaning and washing without needing to take out the keyboard from PC, one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. Stainless steel back plate with holes for rear mounting solution, which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. Adjustable backlight optional (RED, BLUE, WHITE etc.) High quality scratch-proof durable black titanium electroplated on the top stainless steel plate optional.
Dimensions: 360.0mm x 144.0mm (front panel)
| MECHANICAL DATA |
Key: 116 keys
Key top style: Protuberant rectangular keys.
Actuator/keys materials: polymer
Top SS plate: 1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)
Back SS plate: 1.5mm stainless steel plate
Robust polycarbonate frame: Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
Key travel: 1.50mm
Tracker ball: 25.0mm diameter.
Switch life: more than 10 million of operations.
Lettering: laser-etched or high quality ink print.
G.W.: 2.00KGs
Dimensions: 360.0mm x 144.0mm ( L x W ) |
| ELECTRICAL DATA |
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008; IEC 61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan>5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY |
Operating temperature:-20°C to +60°C
Storage temperature: -30°C to +70°C
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40°C: 21 days, IEC 60512-6
Dry heat test at + 85°C: 10 days, IEC 60512-6 |
| RELIABILITY |
RoHS, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK10
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min |
APPLICATION
This keyboard is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force. Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant IP68 dynamic optical trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.
MAIN FEATURES
The keyboard can be dynamic washable with water and other liquids, it can work well even with pouring water for dynamic water proof testing.
NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are necessary;
Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof under hostile environments.
Waterproof execution according to degree of protection IP67 from the panel, the keyboard is sealed against the ingress or liquid and dirt, when mounted in a suitable enclosure.
Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering rub-off.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
Operational life of more than 10 million cycles per key.
Resistant to most commonly used cleaning agents.
Integral PS2/USB compatible IP68 optical trackball module with left & right mouse keys.
