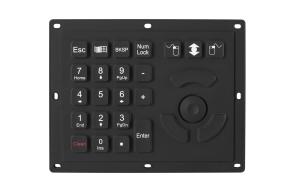

IP68 22 Keys Black Silicone Industrial Joystick Mouse USB or PS/2 Keyboard
a. 22 keys IP67 dynamic sealed and ruggedized silicone rubber keyboard
b. With a Force Sensing Resistor pointing device for fast and accurate cursor position,
c. With integrated numeric keypad,with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise,
d. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,
e. CLEAN key for easy cleaning without needing to take the keyboard from PC, with stainless steel housing protects the electronics controller, with mounting holes for rear panel mounting.
f. DIMENSIONS: 140.0mm x 105.0mm (front panel)
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
This ruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for below wide applications:
MAIN FEATURES:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevice found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Integrated Force Sensing Resistor Pointing Device.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Low-profile keys for easy cleaning
Key life: 10 millions
Clean key Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
MECHANICAL DATA
Key: 22 keys
More than Lifetime 10 million strokes
Output (self-detectable depending on cable): PS2 or USB
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key
Cable Length: 2.50m
G.W.: 0.6KGs
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
EMC Standard: IEC61000-4-2:2008; IEC61000-4-3:2006+AI:2007+A2:2010; IEC 61000-4-4:2004 EMI: EN55022: 2010
EMS: EN55024: 2010
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
