120 Keys Membrane Keyboard With Touchpad and Functions and FN Keys

120 keys membrane keyboard with touchpad and functions and FN keys

DESCRIPTION:

120 keys compact format IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad and 24 function keys (F1, F2...F11, F12...F22, F23, F24) on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN + CLEAN combination key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 2.0mm alumium plate with sand blasting & oxygenation treatment, top panel mounted.

Special Features:

1. Top panel mounted
2. Clean key for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC
3. IP65 dynamic scratch proof industrial membrane keyboard with full keyboard functionalities.
4. CE,RoHS,FCC, IP65 test report etc
5. 120 keys with 24 function keys on the upper line
6. Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment
7. Ease of customizing with multiple languages, to accommodate foreign or custom variants.
8. PS/2, USB connection cables that plug directly into computer like keyboard operations.

SPECIFICATION KEYBOARD:

• Number of Keys: 120
• Key switch Technology: metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
• Actuation Force: 1.0N for key 11.0mm x 11.0mm (press point)
• Key Travel: 0.45mm
• Key switch Lifetime: 3 mil. operations
• Protection Level: IP65, NEMA 4x
• Mounting Type: Top panel mounting or Desk Top.
• Operating Temperature: -20 °C to +50 °C;
• Colors: 4 (Blue, white, grey, black)
• G.W.: 1.20KGs
• Key Dimensions (print area): 11.0mm x 11.0mm

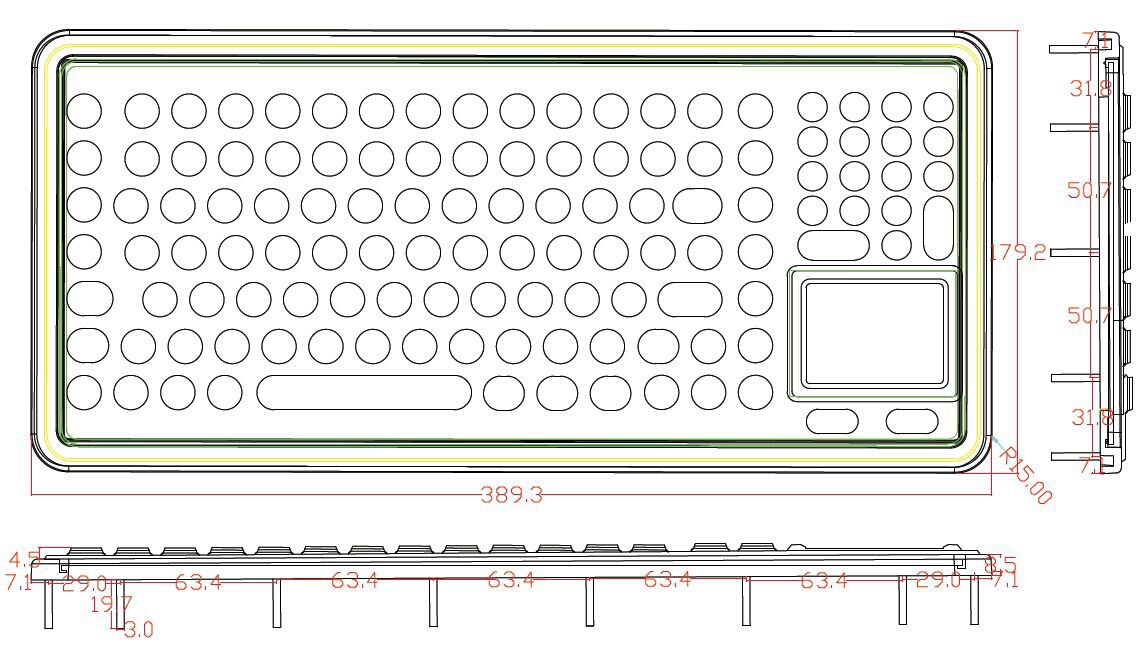

• Dimensions: 389.3mm x 179.2mm (top panel)

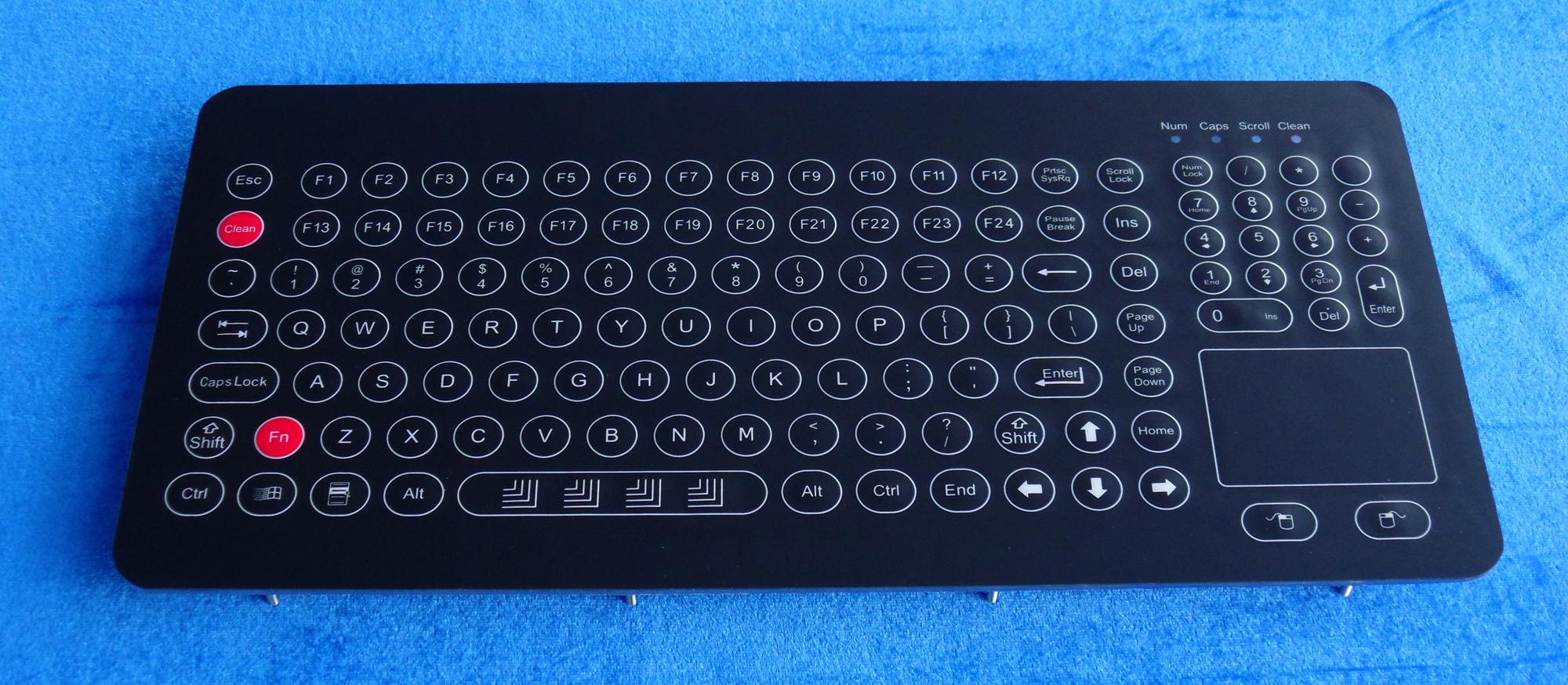

Actual Pictures:
