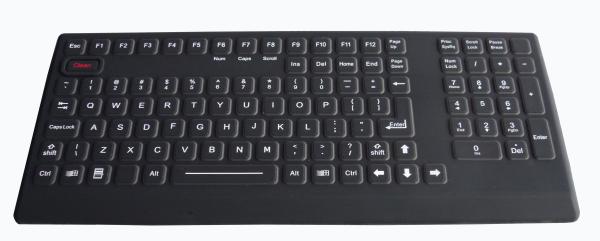

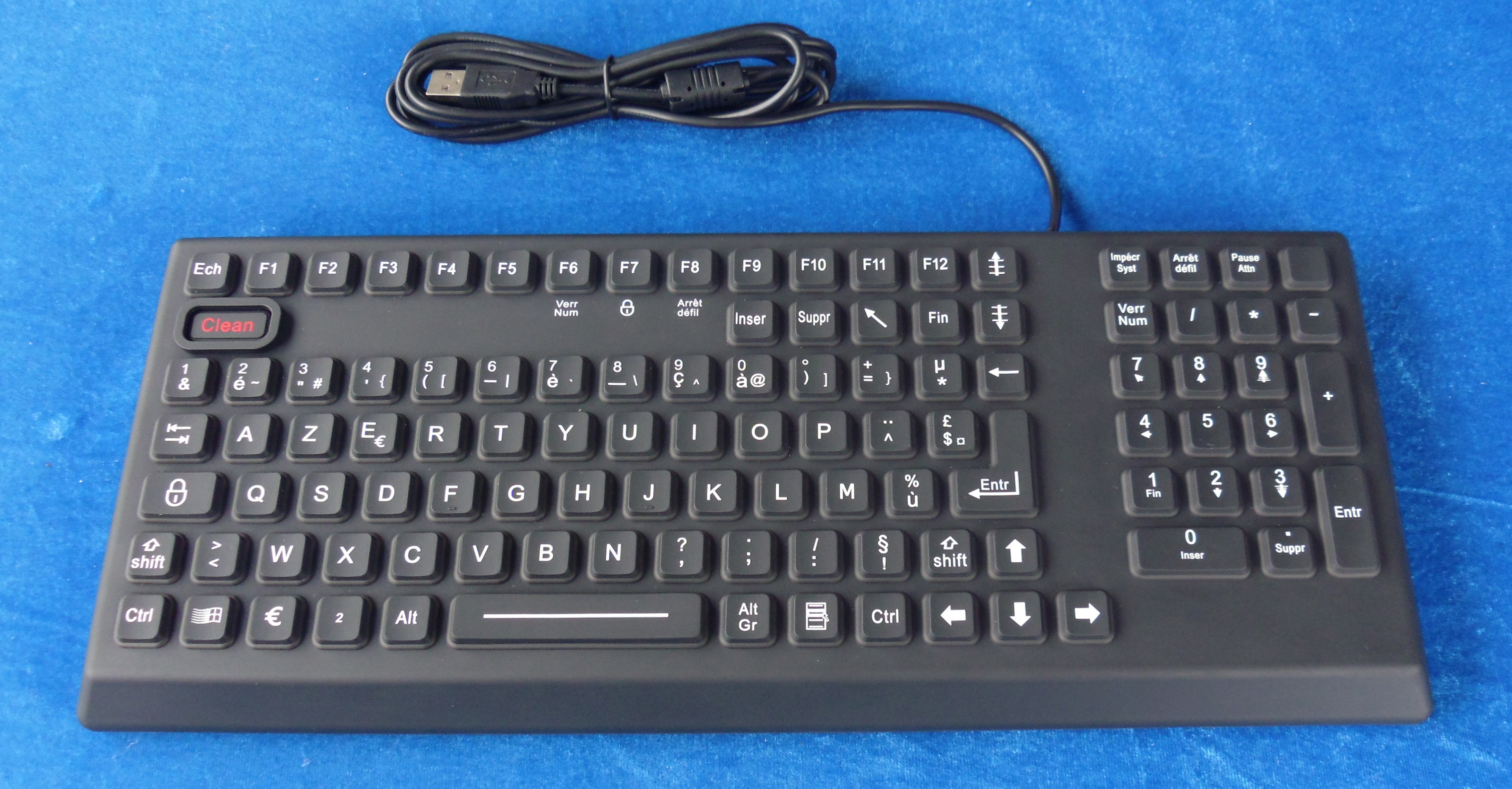

IP68 Silicone rubber 106 keys dynamic rated and ruggedized military grade keyboard

  • 1
  • 2
  • 3

Model Number : K-TEK-M390KP-FN-DT

Brand Name : IKB-MKB

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

Packaging Details : Each keyboard to one box, several boxes to one carton.

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

MOQ : 1pc

material : industrial rubber

mouse : optional

color : white, black

waterproof : yes

dustproof : yes

port : USB, PS2

Contact Now


Water proof silicone rubber ruggedized keyboard with easy cleaning key


Special Features:

1. 106 keys IP68 dynamic rated & ruggedized industrial silicone rubber Hygienic keyboard with industrial
PCB included.


2. integrated numeric keypad, function keys.


3. industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good
tactile feeling for fast and accurate data input without any noise.


4. with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment.

5. Clean key for easy cleaning, movable stand alone desk top version with robust polycarbonate case.

6. adjustable industrial backlight optional.

7. military level optional.


Specification:

MECHANICAL DATA

Key

106 keys

Key top style

Protuberant rectangular keys with tactile feeling.

Key Size

12.0mm X 13.0mm for normal keys,
22.5mm x 13.0mm for enter key
82.0mm x 12.5mm for space bar key.

Key travel

1.5mm

Switch life

more than 10 million of operations

G.W.

1.60KGs

Dimensions:

390.0mm x 154.0mm x 19.0mm (L x W x H)


ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

20mA (non-backlight), 140mA (with backlight on)


EMC Standard:

It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004

EMI:

EN 50081-1

Immunity:

EN 50082-1

Lifespan

> 3 years

Switch Contact Material:

Carbon-on-Gold key switch technology with gold PCB.

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX


ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC(industrial level);-40oC to +85oC(military level)

Storage temperature

-30oC to +70oC(industrial level);-55oC to +150oC(military level)

Humidity

100%

Atmospheric pressure

60-106Kpa

Shock

3x11 ms pulses of 50g on each of 3 axes

Vibration

POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability

Printed Circuit Board

94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V


RELIABILITY

Certification

RoHS Compliant, CE and FCC, IP68,ESD

Protection Level

IP68;NEMA 6P

Key Lifespan

>10 million actuations

MTBF

>50000H

MTTR

<30min


IP68 Silicone rubber 106 keys dynamic rated and ruggedized military grade keyboard
IP68 Silicone rubber 106 keys dynamic rated and ruggedized military grade keyboard
