Industrial Vandal Resistant Usb Backlit Keyboard With Trackball Mouse

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-A343-MTB-BL

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Price to be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Keys : 69

Switch life : more than 10 million of operations

OS : All windows, Linux, Unix, Mac OSX

Interface : USB keyboard, PS2 keyboard, RS232 keyboard

Key travel : 2mm

Dimensions : 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

Trackball : mechanical trackball module

Backlit : blue, red, green optional

Material : stainless steel keyboard

Vandal resistant : IK09

Water proof : IP65

Custom layout : yes

Contact Now

MECHANICALIP65 Industrial Vandal Resistant Backlit USB Keyboard with trackball mouse

Descriptions:
1. 69 Keys Compact Format IP65 static Vandal Resistant Backlit USB Keyboard.
2. IP65 static Mechanical Trackball with 400 DPI.

3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise
4. one compete silicone rubber along mounting aluminum plate for easy mounting & sealing tightly with cabinet
5. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling
6. rear aluminium panel mounting with mounting holes.

Applications:
This Keyboard is mainly targeted for use for:
A: unsupervised or semi -supervised positions of varied access applications,
B: internet terminals and information kiosks at universities,
C: shopping malls, hotels, airports, railway stations and other public areas,
D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

MECHANICAL DATA:

Actuator/keys 69 keys, super quality SUS304 brushed stainless steel
Key top style Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar
Key travel 2.0mm
Actuation Force 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life more than 10 million of operations.
Front Plate 1.5mm thickness super quality brushed stainless steel
Back Plate 3.0mm thickness brushed & oxidized aluminium
Tracker ball 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball
G.W. 1.70KGs

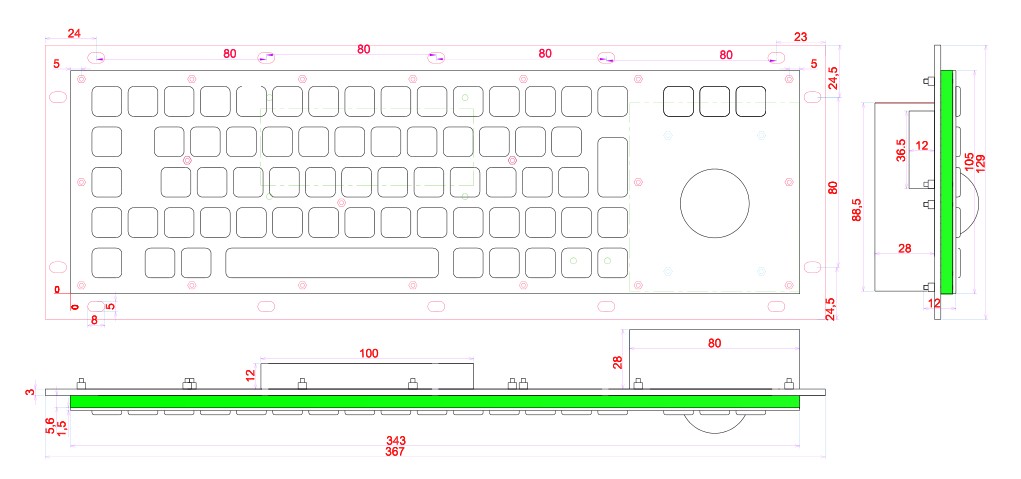

Dimensions 343.0mm x 105.0mm (front panel) , 367.0mm x 129.0mm (back panel)

MAIN FEATURE:

  • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
  • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
  • Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly mounting to enclosure or panel.
  • An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
  • Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
  • Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.
  • Complete electronic modules including controller in close consultation with our customers are available.
  • PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

ELECTRICAL DATA:

  • Supply Voltage: +5V DC +/-5%
  • Current Rating: appr. 30mA
  • EMC Standard: It is compliance with the council IEC 61000-4-2:2008；
  • IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
  • EMI: EN 55022: 2010
  • EMS: EN 55024:2010
  • Lifespan > 5 years
  • Switch Contact Material: Carbon-on-Gold key switch technology PCB.
  • Interface: PS2, USB available
  • OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

More View:

Industrial Vandal Resistant Usb Backlit Keyboard With Trackball Mouse

Industrial Vandal Resistant Usb Backlit Keyboard With Trackball Mouse

Company Profile:

Industrial Vandal Resistant Usb Backlit Keyboard With Trackball Mouse

Package and Shipment:

Industrial Vandal Resistant Usb Backlit Keyboard With Trackball Mouse
